What we need to know in order to Quote You Happy!

Screwed Immersion Heaters –

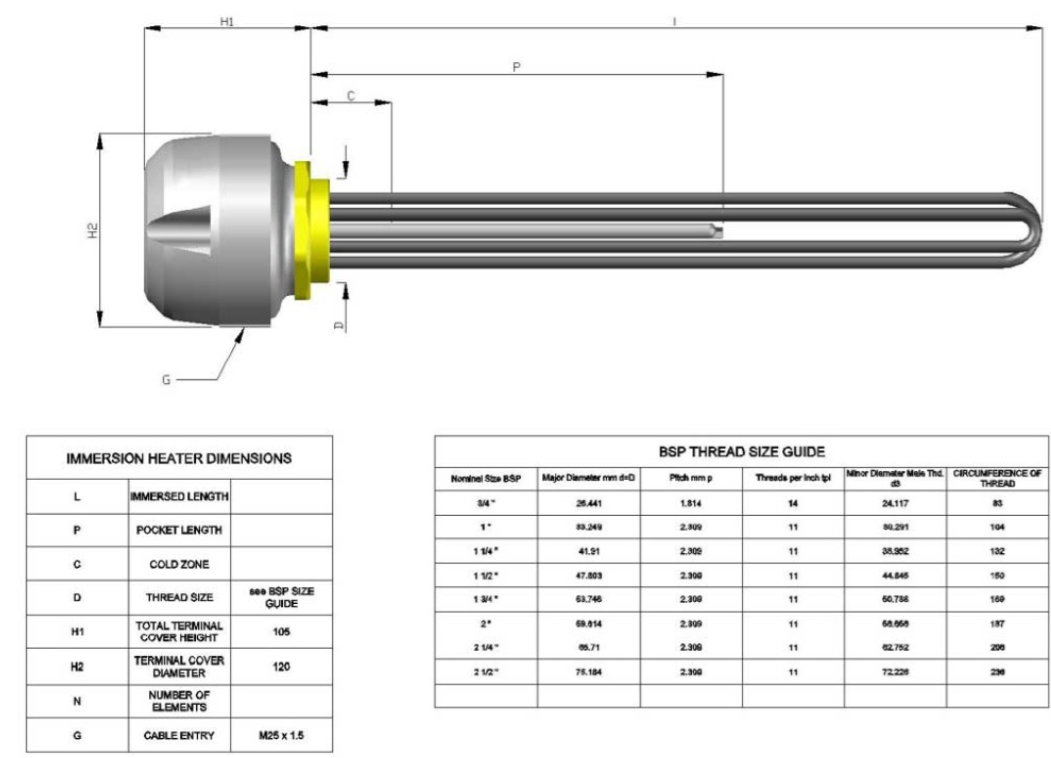

D – Screwplug Size (Determines number of elements fittonnable, U Bent or Looped)

I – MAXIMUM Immersed Length (More element = Lower watt density = longer working life)

C – Cold section (First few inches of element are not hot, rest is)

kW power output?

Voltage? Single or Three Phase?

Operating and/or Cutout Temperature?

Flanged Heaters –

The PDF link below –

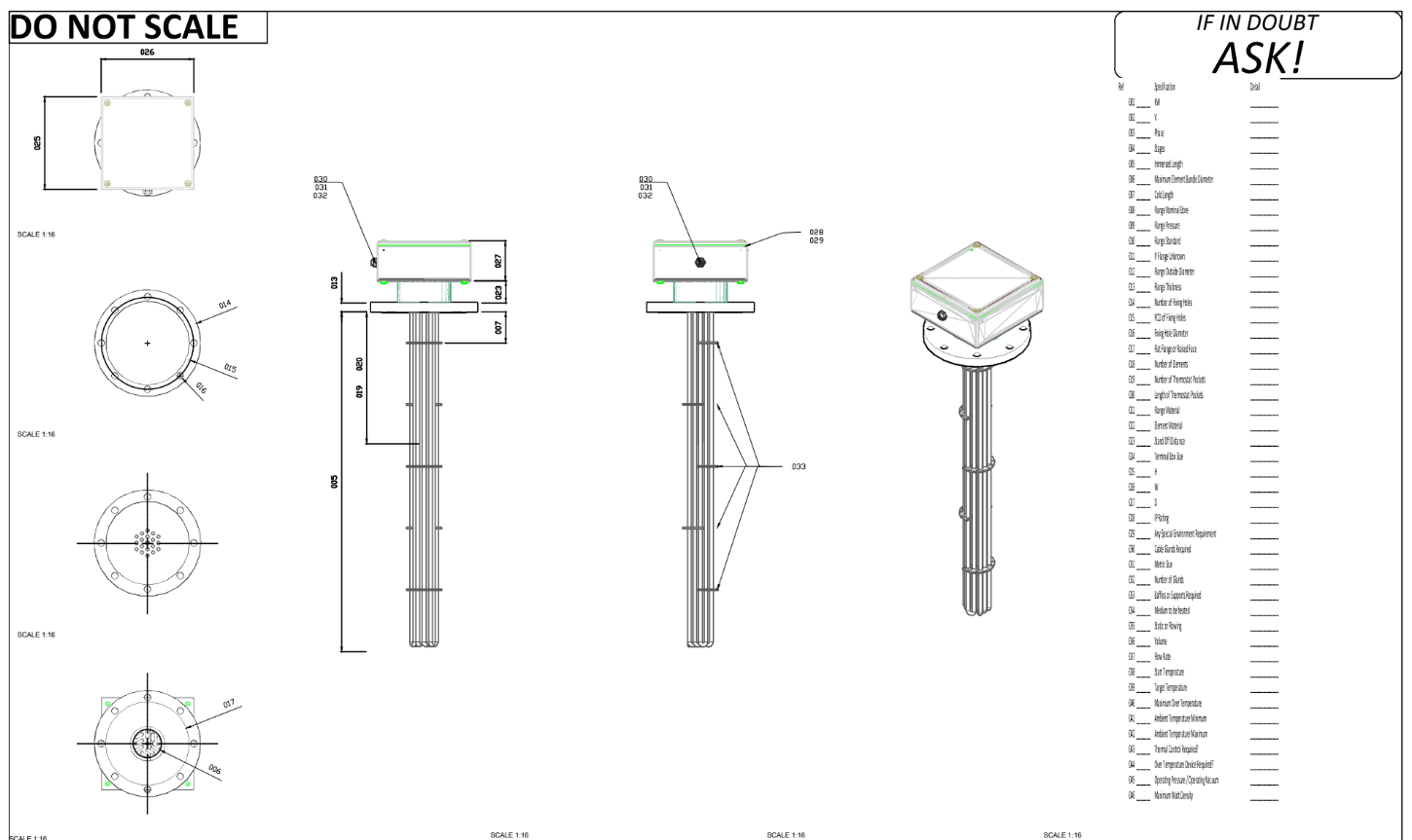

FLANGE HEATER KEY DIMENSIONS

…will show you this –

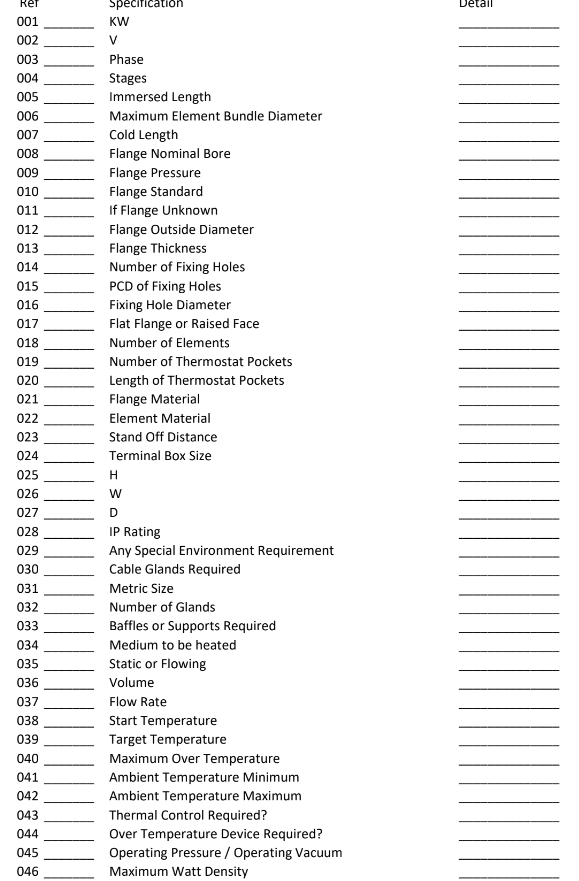

…or just the specs – FLANGE HEATER KEY DIMENSIONS list downloadable as a PDF too.
