Immersion Heater Wiring Diagram

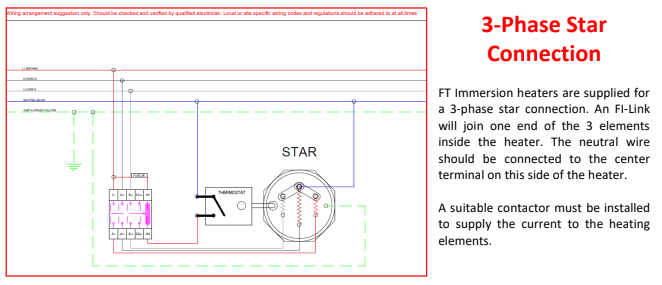

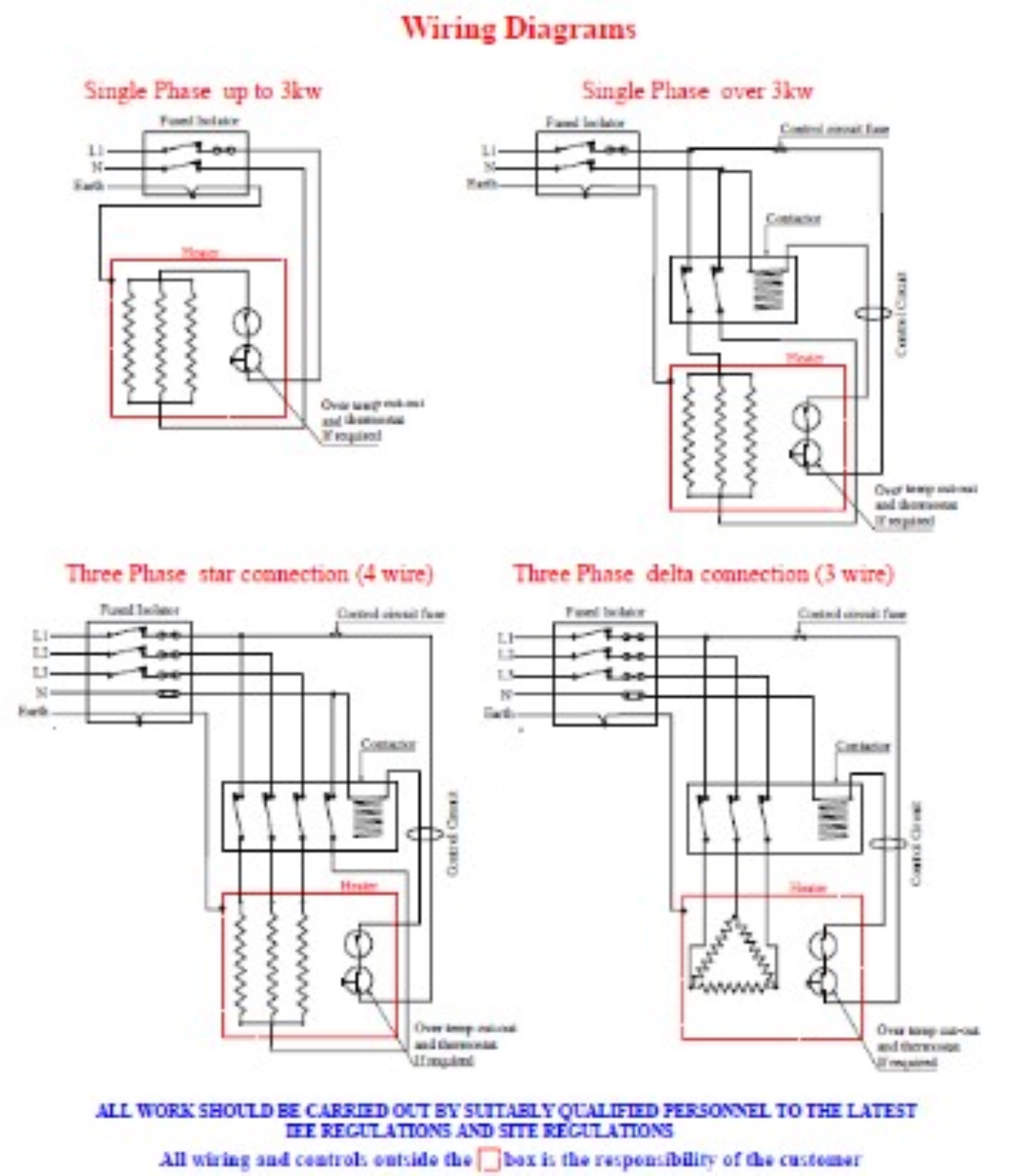

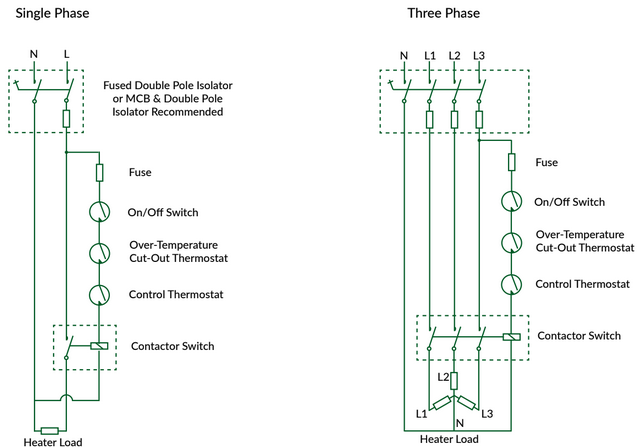

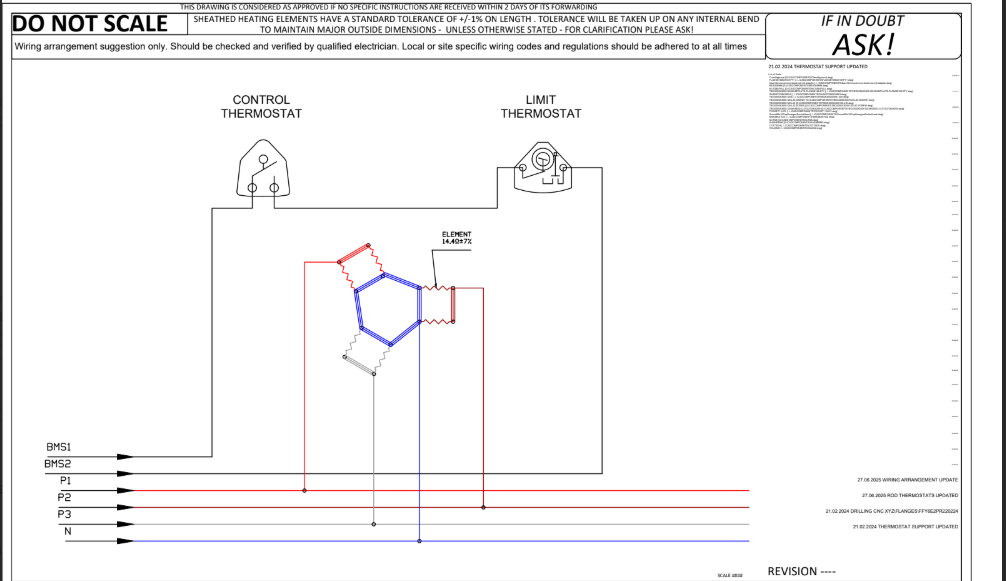

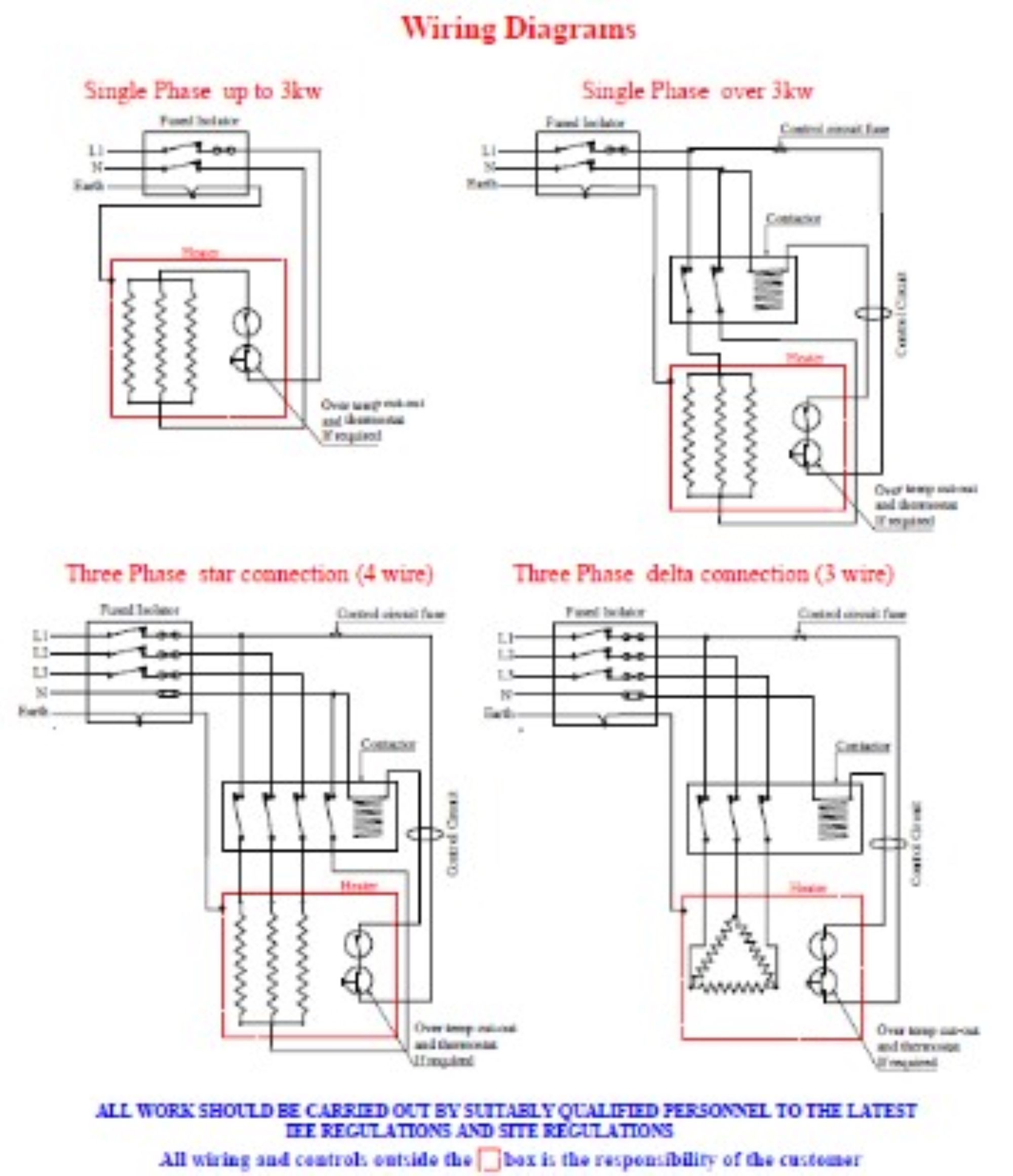

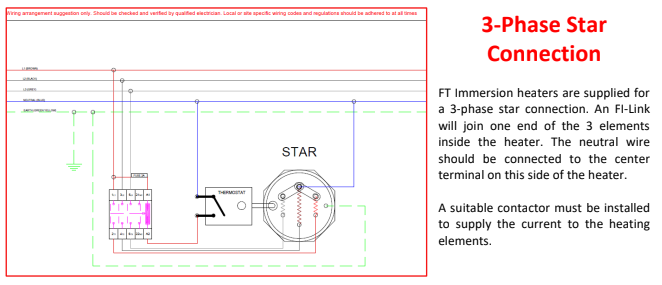

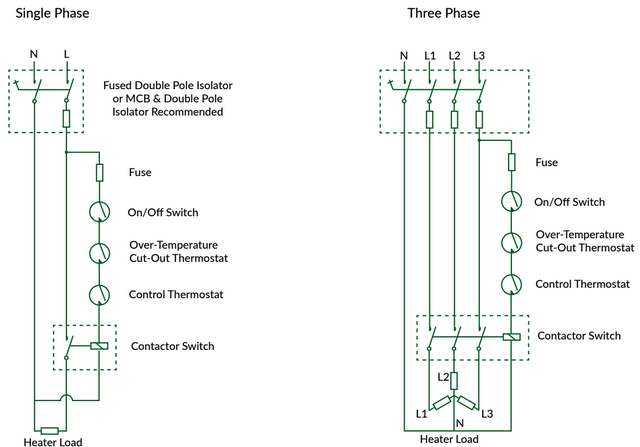

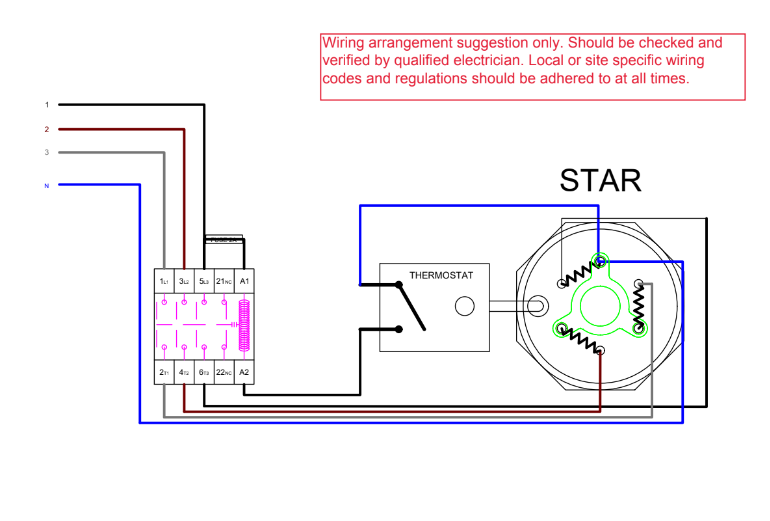

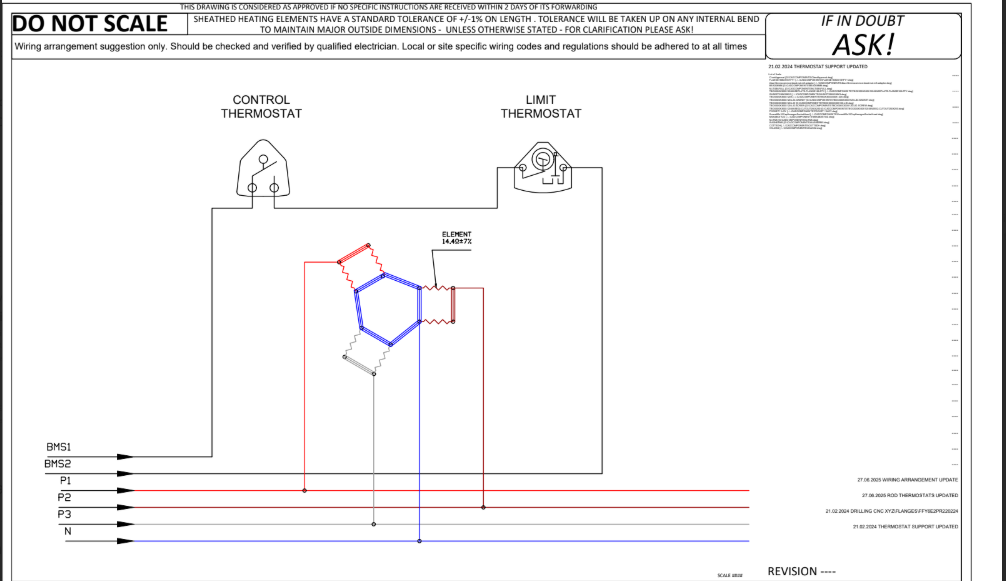

Please find below our Immersion Heater Wiring Diagrams.

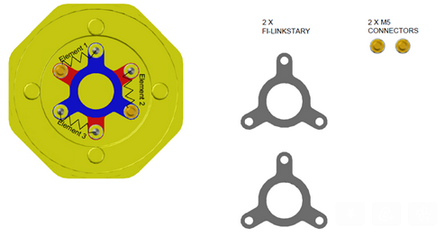

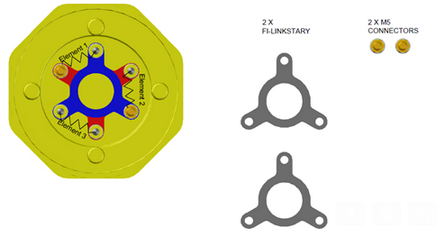

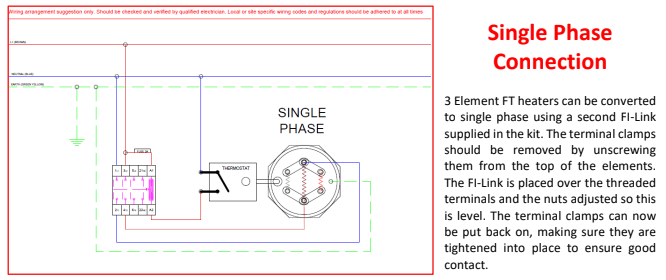

*Add another FI-LINK020-STARY link offset vertically by 4mm. – Then reduce the M5 connectors from 4 to 2 – Only recommended with a pocket – if no pocket we would avoid loop triangular

I know they are not great.

If you wanna make me something better, in return for a massive discount on your order, or some other form of barter/collaboration, please let me know on 07897 246 779 or immhtr@gmail.com
