Flanged Immersion Heater

Do you want your Flanged Immersion Heater in a coupla weeks, rather than a coupla months?

FFY RangeDIN/DN HeatersPN Heaters

Are you even more desperate than that, and need them in a week? We can do that too. But I will have to introduce you to what we are now more politely* calling the “Distress Price” which is basically a 50% premium added to the standard price, for the privilege of jumping the queue. (When I ask “When do you NEED them by?”, “Yesterday!” is no longer a comedy answer! Edit 9/11/23 “The day before yesterday!” did make me chuckle tho!)

Do you want your heater to be British manufactured, to the highest possible standards, by highly trained people, paid proper wages to cover their British cost of living?

Then, with the whole of the WorldWideWeb to choose from, you have found the right place?


Whatever your Flange Immersion Heater needs, call Jamie to discuss them, on 01827 215684, and we will get you sorted with bespoke, high quality heaters, on an honest leadtime, that suits you.

Your first port of call should probably be our FFY Range 12-54kW on 168mm Ø X 12mm AISI316 FLANGE 8 x 10mm HOLES 146mm PCD?

Or our DIN Heaters? DN50  DN80 DN125.

Or our PN Rated Flanged Immersion Heaters.

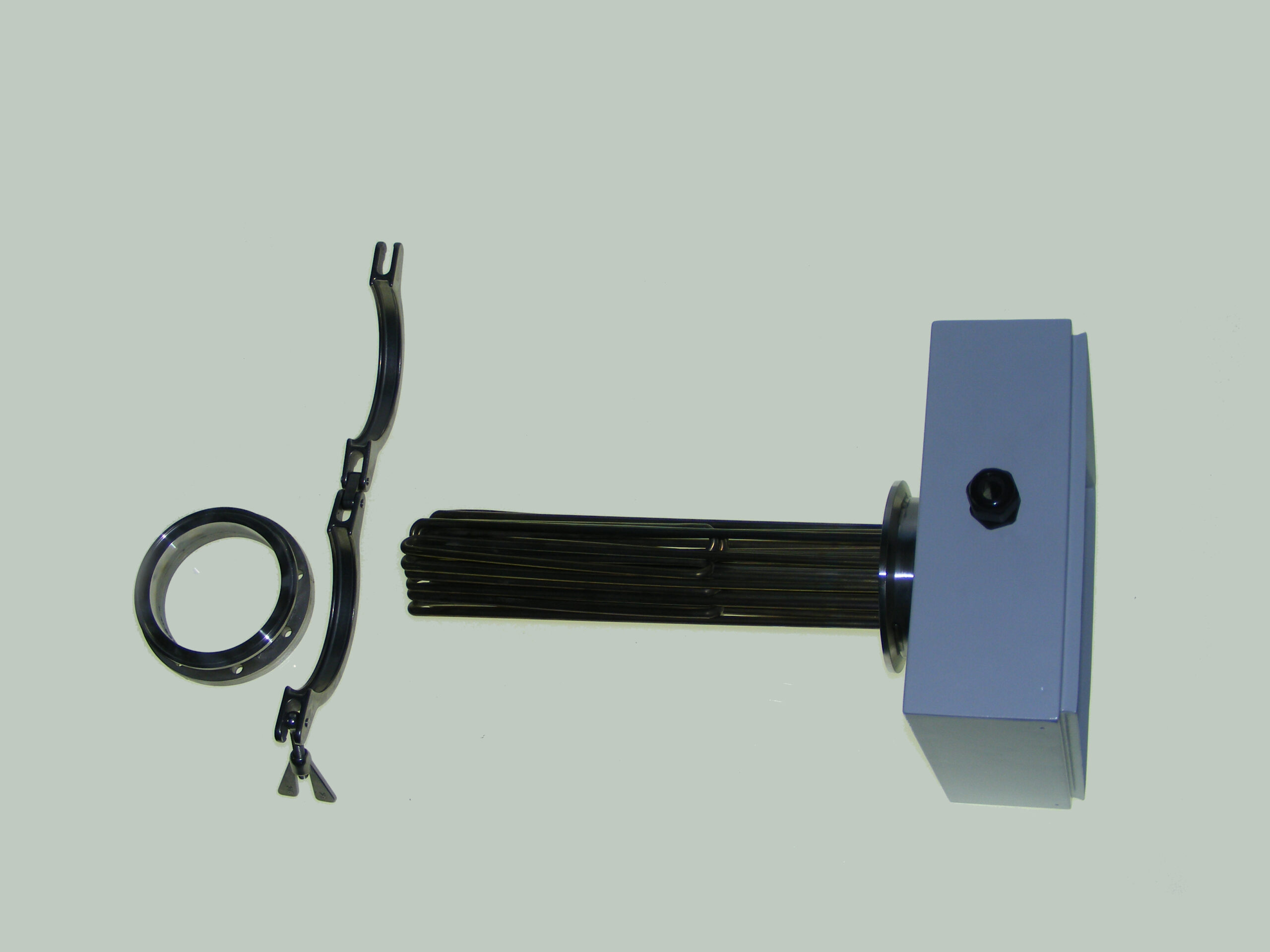

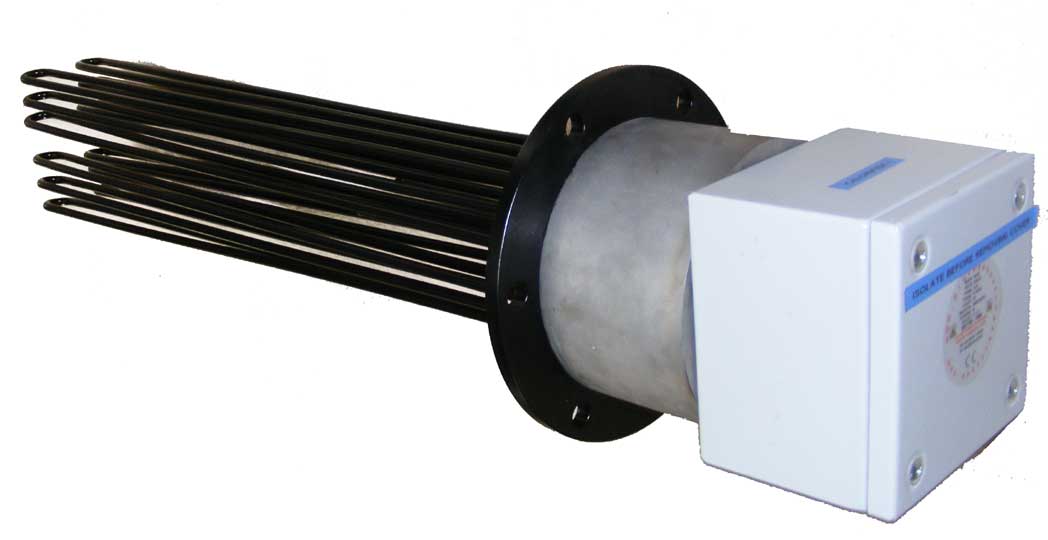

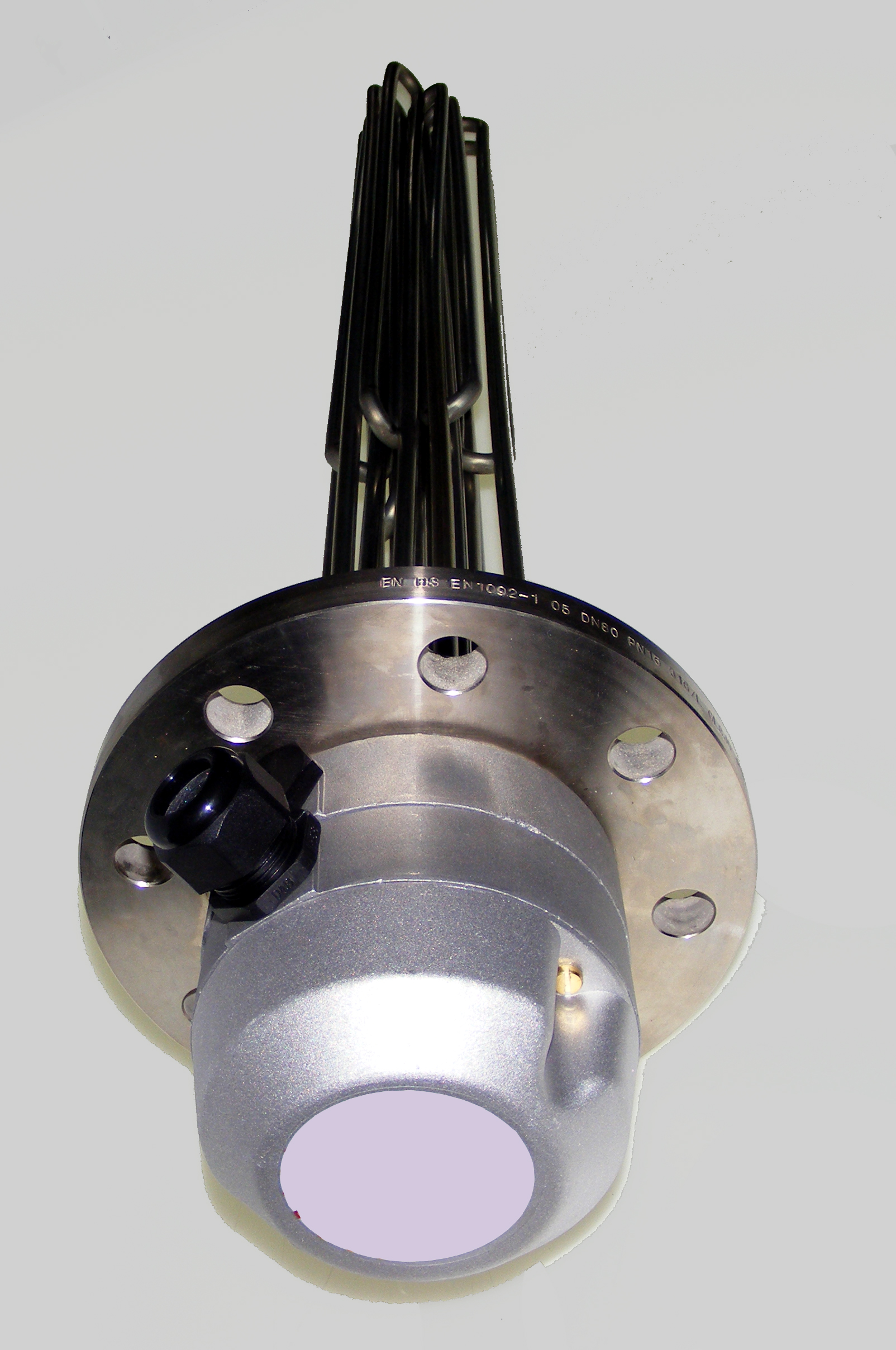

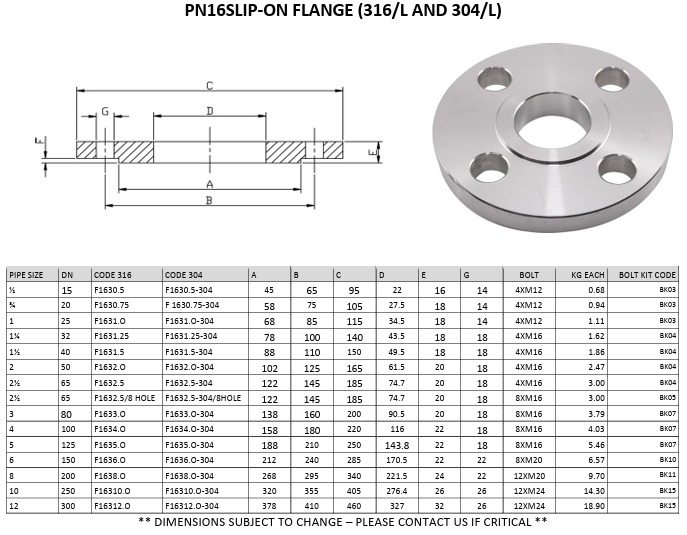

Typical Flange Dimensions.

As with pipes (hence the British Standard Pipe Legacy), it was necessary to standardise the dimensions of the various flange types depending upon requirements. Standardisation also facilitates easier communication between relevant parties (designer, manufacturer etc.), with a reduced likelihood of error. Typical Flange Dimensions

To prevent any potential confusions, the designer indicates the type of flange, its size, pressure class, schedule, and the standard to which it is to conform.

In Europe we conform to DIN Standards (Deutsches Institut für Normung – German Institute for Standardization). Also known as just DN. Here at Immersion Heaters UK, we tend to stick to DN50, DN80 & DN125.

In the United States, flange standards are set by the American Society of Mechanical Engineers (ASME), American National Standards Institute (ANSI), and American Water Works Association (AWWA).

These standards are NOT interchangeable.

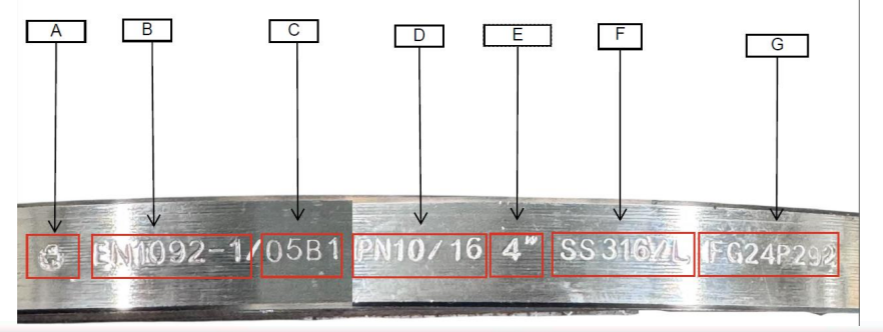

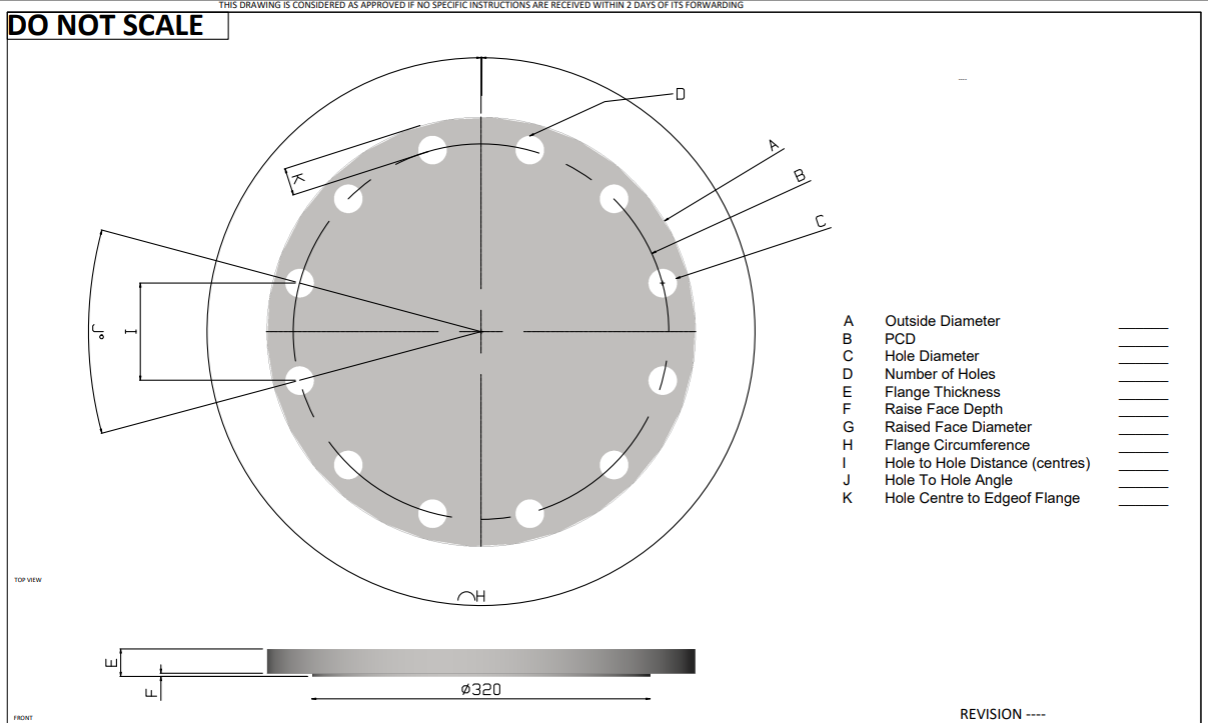

DIN Flange Measurements

DIN flange measurements use the metric system, including millimeters (rather than inches) for length and bar (instead of PSI) as the unit of pressure, as is the international standard. Required measurements for DIN flanges include the Inner Diameter (ID) and Outer Diameter (OD). Also consider the number of bolt holes necessary, as well as the measurement from the center of one bolt hole, directly across to the center of the adjacent bolt hole.

Then, refer to the corresponding measurement chart to determine the appropriate flange size based on the measurements. A DIN measurement chart may include a comparison of inches to millimeter measurements, but the physical measurement isn’t the only consideration when choosing the appropriate flange. Keep flange pressure rating requirements in mind, as well.

DIN and Pressure Rating

DN standards use Pressure Nominale (PN) to designate a pressure rating—for example, PN16 is suitable for use up to 16 bar at ambient temperature.

DIN Fittings and Accessories

DN flanges match pipe ends that comply with the same standard, but accessories and fittings must also be the correct size. For a leakproof seal, ensure your gaskets are within the specified dimensional tolerances for use with DIN fittings.

Common Flanged Immersion Heater Sizes & Specs.

Our FFY Range are equivalent to –

Heatrod – HRF


Santon – DY

168mm Ø X 12mm AISI316 FLANGE 8 x 10mm HOLES 146mm PCD

Model Loading kW 415v 3Ph Elements Immersed Length” Immersed Length mm Loading kW 380v 3Ph Loading kW 440v 3Ph
FFY1216 12 6 16 405 10.1 13.5
FFY1223 12 6 or 9 23 584 10.1 13.5
FFY1816 18 6 or 9 16 405 15.1 20.2
FFY1823 18 6 or 9 23 584 15.1 20.2
FFY2416 24 6 or 9 16 405 20.1 27
FFY2423 24 9 23 584 20.1 27
FFY2716 27 9 16 405 22.6 30.4
FFY3027 30 9 27 685 25.2 33.7
FFY3627 36 9 27 685 30.2 40.5
FFY4527 45 9 27 685 37.7 50.6
FFY5436 54 12 36 915 45.3 60.7
  • Bespoke to suit your specific requirements.
  • 1kw to 2000kw power rating.
  • 240 or 415 volts with other voltages available for equipment destined for other countries.
  • Various flange size and material to suit application,
  • Stood off‘ terminal enclosures available for high temperature applications.
  • Available with thermostats and/or safety cut-outs,
  • Incoloy 800 or stainless steel sheathed elements,
  • Available with a range of IP rated terminal enclosure to suit.
  • Flameproof and explosion-Proof ATEX certified Exd constructions available on request.

Needing a Flanged Heater doesn’t have to be a stress. Let us show you a better, British way.

Flanged Immersion Heater – Useful Stuff.

3 x U bent element Immersion Heaters UK
3 x U bent element Immersion Heaters UK

On this site, you will not only find an online catalogue of our core range of products. You’ll find tips, advice and guidance, as well as links to other resources to make your life easier, including our heating calculators.


On our blog, ElementsOfHeating there is a wealth of relevant and useful information, such as an explanation of what a heating element actually is. Also we have a full description and explanation of the component parts of a screwed immersion heater and my best punt at explaining the joys of watt density, and it’s crucial importance when choosing the most appropriate immersion heater for water, oil, and breweries. Also available is an informational entry about the process we go through when designing immersion heaters generally.

YouTube Channel.

On our YouTube channel we have videos showing how to wire an immersion heater


…an explanation of what a heating element is

..as well as this 2 minute explanation of what an immersion heater is.

*I’ll probably still call it the “OH SHIT” Price on the fone, to be perfectly honest, so be warned if easily offended.
