1750w 1.75kW Heating Element.
1750w 1.75kW Heating Element

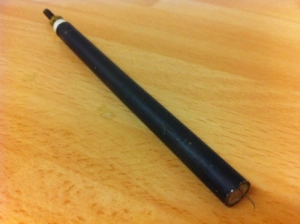

Our 1750w 1.75kW Heating Element, 8mm diameter, UK manufactured Heating Element is available in the following straight lengths from stock, but can be rolled to accommodate other specific lengths if required.
- 12″, 24″, 36″, 48″, 60″, 72″, 84″, 96″, 108″, 120″, 132″, 144″, 156″, 168″, 180″, 196″.
- Incoloy 800, “a superior stainless steel”, 8mm diameter elements.
- 4BA terminals by default 3.6mm ⌀, but can be spade terminals if required.

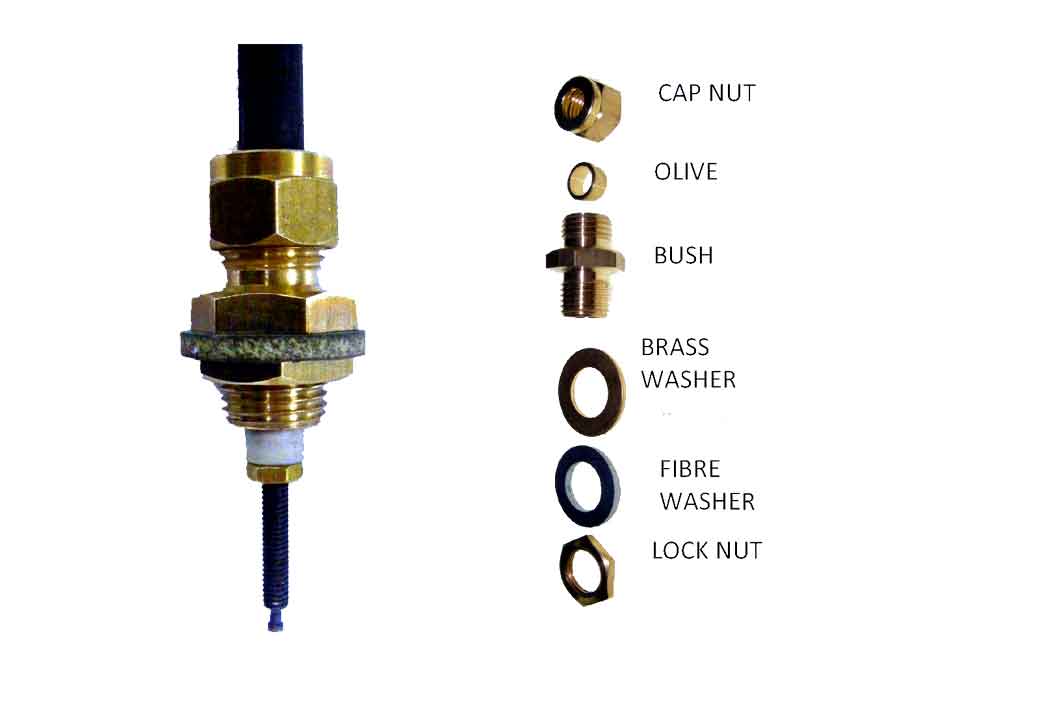

- Can be fitted with 1/4″ Compression Glands, fitted or bagged.
Elements can be bent or formed into the configurations shown below. Some forming is done by a clever machine, but most is done by an even cleverer fellow, built like Popeye. Thus, the more complicated & involved the bends, the more you will have to pay for the spinach required to build the lad up. Straight elements are cheapest, and you could form them yourself. If you are feeling adventurous. Or the shaping is just too weird and specific. But, in my humble opinion, it is best to let the experts do their work.
1750w 1.75kW Heating Element Available Bends.
Just for clarification, an Immersion Heater (see below) is 3 such elements on a screwplug with a terminal box housing the connections. Cuz we all speak diffrent! So, as we specialise in Immersion Heaters, it would seem rude not to also provide industrial quality heating elements as well.
We can supply elements to your exact length, power output and shape requirements (see above). But as dimensions and accuracy are critical, it’s best we have a conversation about your needs. So call Jamie on 07897 246 779 to discuss your needs.
