DIN500/DN500/20″NB Flanged Immersion Heater

Category: Tags: , , , , , , , , , , , , ,

Description

Discussing various aspects and specifications is crucial when placing an order for a DIN500/DN500/20″NB Flanged Immersion Heater. Screwed immersion heaters are standardized, readily available for online purchase. However, flanged heater requirements are unique to each individual application. Therefore, it is advisable to engage in a conversation. Feel free to call Jamie at 01827 215684 to discuss your specific needs.

We can usually turn these Premium Quality, British Manufactured heaters around in 2-3 weeks. If you are losing lots of money due to a dead heater & a lack of forethought in carrying a spare, you can pay a 50% premium for a one week turnaround. We are now more politely calling this the “Distress Price”*.

If your power requirements fall within the range of 12 – 54kW, our FFY Range might be suitable for your needs.

These heaters are available at a range of Pressure Nominale (PN) ratings.

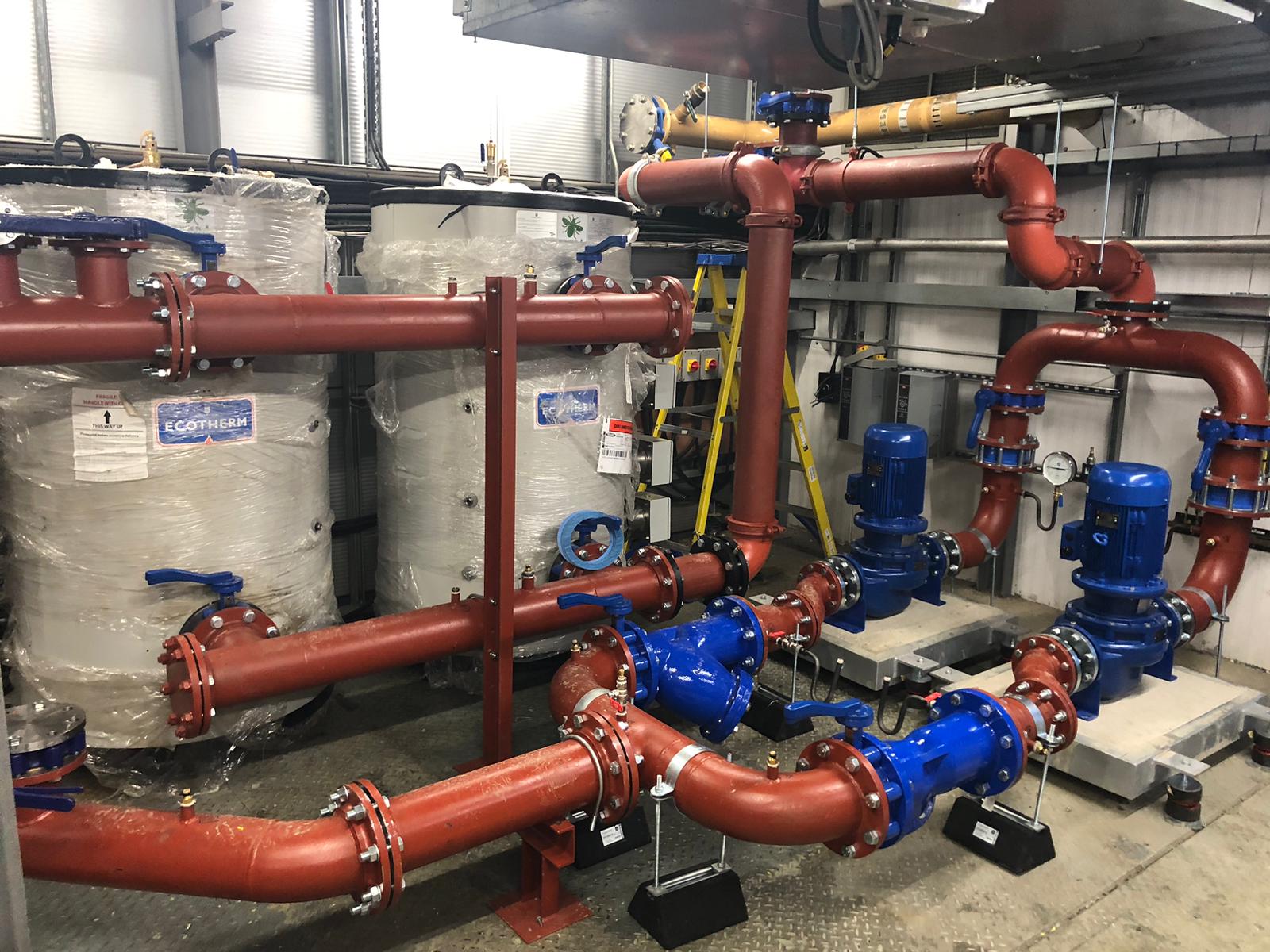

DIN500/DN500/20″NB Flanged Immersion Heater Images.

DIN500/DN500/20″NB Flange has the following specs, according to it’s required PN (Pressure Nominale) rating.

Nominal Size 500mm (20″)
Flange Flange Number Diameter Diameter Diameter Height Thickness
Type Diameter PCD of bolts of bolts of holes R/Face R/Face of flange
PN6 645 600 20 M20 22 570 4 30
PN10 670 620 20 M24 26 585 4 38
PN16 715 650 20 M30 33 610 4 46
PN25 730 660 20 M33 36 615 4 56
PN40 755 670 20 M39 42 615 4 72
PN64 800 705 20 M45 48 615
PN100 870 760 20 M52 56 615
PN160
PN250
125/150 699 635 20 29 32 584 1.6 42.9
300 775 686 24 32 35 584 1.6 63.5
600 813 724 24 41 44 584 6.3 88.9
900 857 749 20 51 54 584 6.3 107.9
1500 984 832 16 76 79 584 6.3 177.8
Table A 705 641 12 22 25 28.6
Table D 705 641 16 22 25 28.6
TableE 705 641 16 22 25 38.1
Table F 737 673 24 29 32
TableH 737 673 24 29 32 597
TabIeJ 737 673 24 32 35 597
TableK 787 711 20 38 41 622
TableR 806 730 20 38 41 622
Table S
TableT





































Useful DIN500/DN500/20″NB Flanged Immersion Heater Related Information

120KW 415V 1200mm IMMERSED DN250 10NB PN16 DIN80 / DN80 / 3"NB Flange
120KW 415V 1200mm IMMERSED DN250 10NB PN16 FLANGE HEATER vertical

As a user on this site, you’ll discover not only an online catalog featuring our core product range but also tips, advice, and guidance. Additionally, you’ll find links to other resources, including our heating calculators, designed to make your life easier.

Our blog, ElementsOfHeating, offers a wealth of relevant and useful information. You can find an explanation of what a heating element is. , a comprehensive description and explanation of the component parts of a screwed immersion heaterr, and my best attempt at explaining the significance of watt density and its crucial importance when selecting the most appropriate immersion heater for water, oil, and breweries. Additionally, we provide information about the process we undergo when designing immersion heaters in general.

YouTube Channel.

On our YouTube channel we have videos showing how to wire an immersion heater…



…an explanation of what a heating element is…

..as well as this 2 minute explanation of what an immersion heater is.

*Formerly known as the “OH SHIT” Price. Mention this in your conversation & I’ll give you a discount for your diligence in actually checking the footnote. Fair play, to you!
